Cells:
LiFePO4 Lithium iron phosphate material, safe and reliable; Fully automated production of cells, the process is thermally stable,the charge and dischar
No. | Inverter Brand | Protocol version |
1 | Voltronic | Inverter and BMS 485 communication Protocol-2020/07/09 |
2 | Schneider | Version2 SE BMS Communication Protocol |
3 | Growatt | Growatt BMS RS485 Protocol 1xSxxP ESS Rev2.01 |
Growatt BMS CAN-Bus-protocol-low-voltage-V1.04 | ||
4 | SRNE | Technical specification Studer BMS Protocol V1.02_EN |
5 | Goodwe | LV BMS Protocol (CAN) for Solar Inverter Family EN_V1.5 |
6 | KELONG | CAN communication protocol between SPH-BL series inverter and BMS |
7 | Pylon | CAN-Bus-protocol-PYLON-low-voltage-V1.2-20180408 |
8 | SMA | SMAFSS-ConnectingBat-TI-en-20W |
Note: 1.If the battery is abnormal with the inverter, please confirm the protocol version
2.If you use other brand inverters not listed in the list, please provide the protocol or inverter so as to test the compatibility with our battery before shipment.
3.Above table including but not limit to those compatible inverters listed.
Module type | 51.2V 100Ah |
Battery cells required | Square aluminum case GSP34135192- 3.2V 100Ah |
The main parameters | Charging voltage: 54V |
Rated capacity: 100Ah | |
Max. continuous charge current: 100A | |
Maximum continuous discharge current: 100A | |
Operating temperature: charging 0-60°C, discharge -20-609C | |
Weight: about 42Kg | |
Size: 600*398* 164mm | |
Cycle life: ≥2500 Cycles @80%DOD,0.2C/0.2C | |
IP Class: IP55 | |
Communication Port: RS485/CAN | |
Bluetooth (optional), WIFI (optional) |

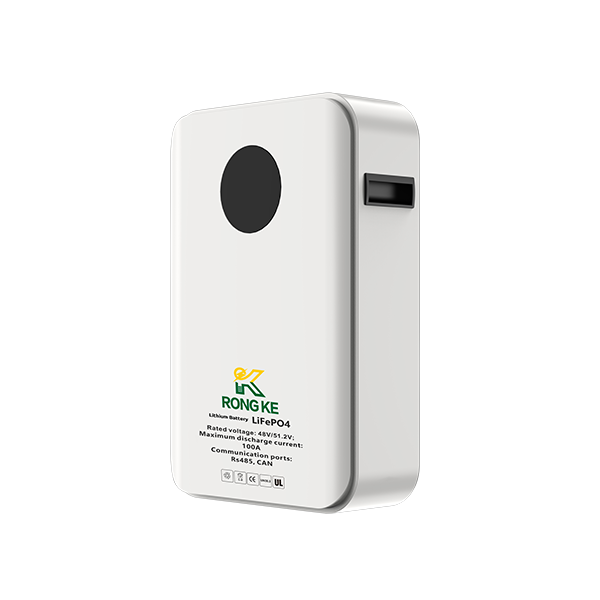

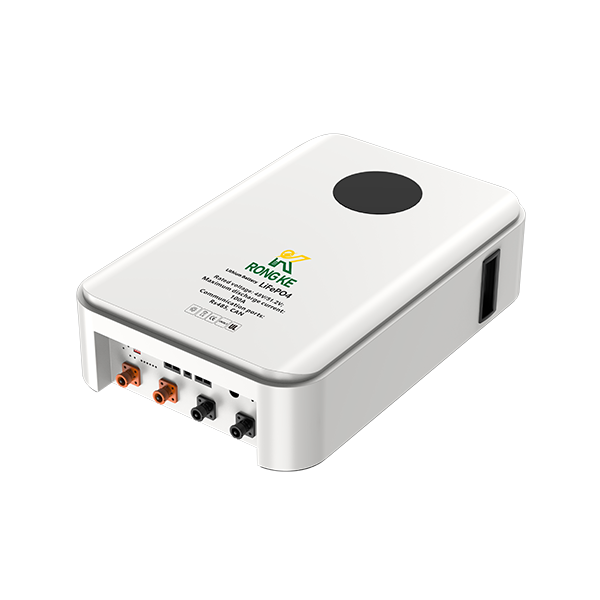

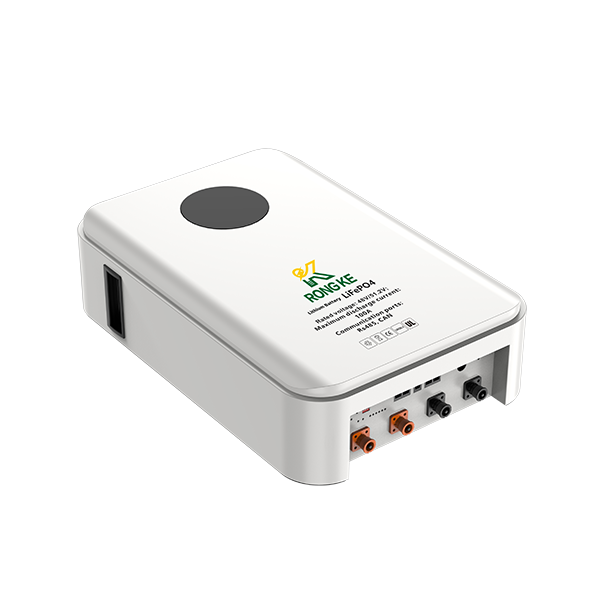

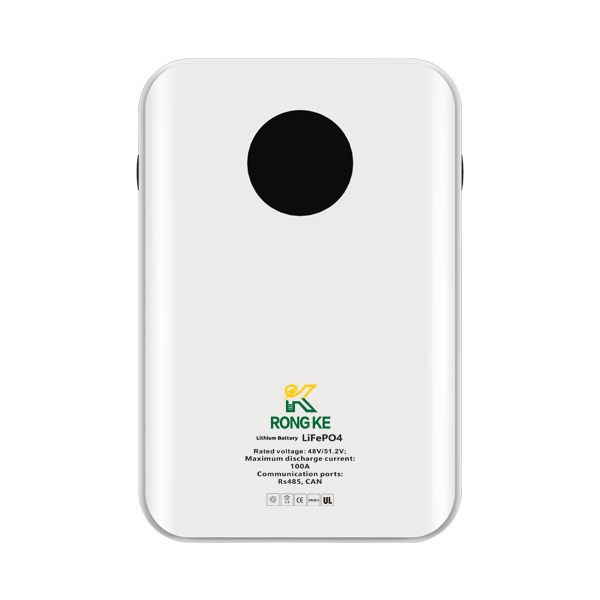

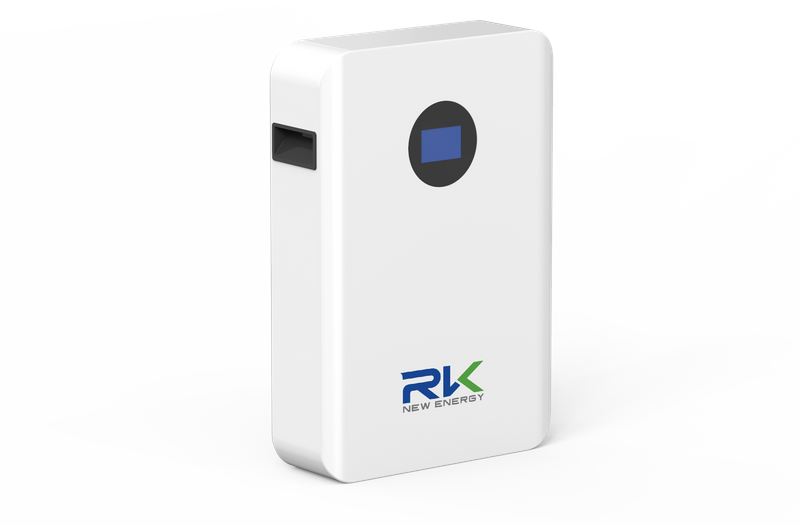

Wall Mounted Battery Storage
Comprehensive advantages
1. Long cycle life reduces cost of average life expectancy
2. Maintenance -free brings lower cost
3. The operation temperature range is wide
4. Intelligent Battery Management System
5. The battery will not be burnt or exploded in case of acupuncture, baking and other extreme statues
Model | RK51-LFP100 | RK51-LFP184 | RK51-LFP200 |
Nominal Voltage(V) | 51.2V | 51.2V | 51.2V |
Nominal Capacity(Ah) | 100Ah | 184Ah | 200Ah |
Usable Capacity(Wh) | 5.12KWh | 9.42KWh | 10.24KWh |
Dimension(L*W*H,mm) | 600 *410 *166 | 800 *510 *166 | 600 *460 *225 |
Weight(Kg) | 50kg | 80kg | 94kg |
Cycle Life | 4000~6000 , 25℃ | 4000~6000 , 25℃ | 4000~6000 , 25℃ |
Communication Port | RS232 .RS485 .CAN | RS232 .RS485 .CAN | RS232 .RS485 .CAN |
Charge Temperature ℃ | 0℃ to 55℃ | 0℃ to 55℃ | 0℃ to 55℃ |
Discharge Temperature ℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ |
Storage Temperature | 0℃ to 40℃ | 0℃ to 40℃ | 0℃ to 40℃ |
Discharge Cut Off Voltage (V) | 46.4V | 46.4V | 46.4V |
Charge Voltage(V) | 57.6V | 57.6V | 57.6V |
Internal Impedance(mΩ) | ≤50mΩ | ≤50mΩ | ≤50mΩ |
Charge Current (A) | 30 (Recommended) | 30 (Recommended) | 30 (Recommended) |
50 (Max) | 50 (Max) | 50 (Max) | |
Discharge Current (A) | 50(Recommended) | 50(Recommended) | 50(Recommended) |
100(Max) | 100(Max) | 100(Max) | |
Design Life(Years) | 10~15 | 10~15 | 10~15 |
