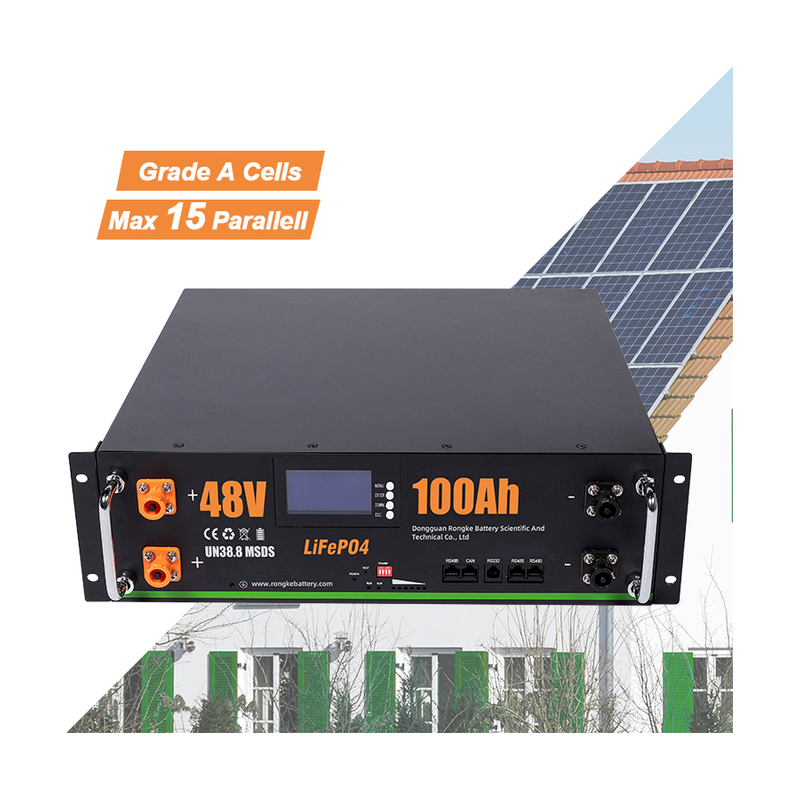

RK48100LFP-HES
Rongke

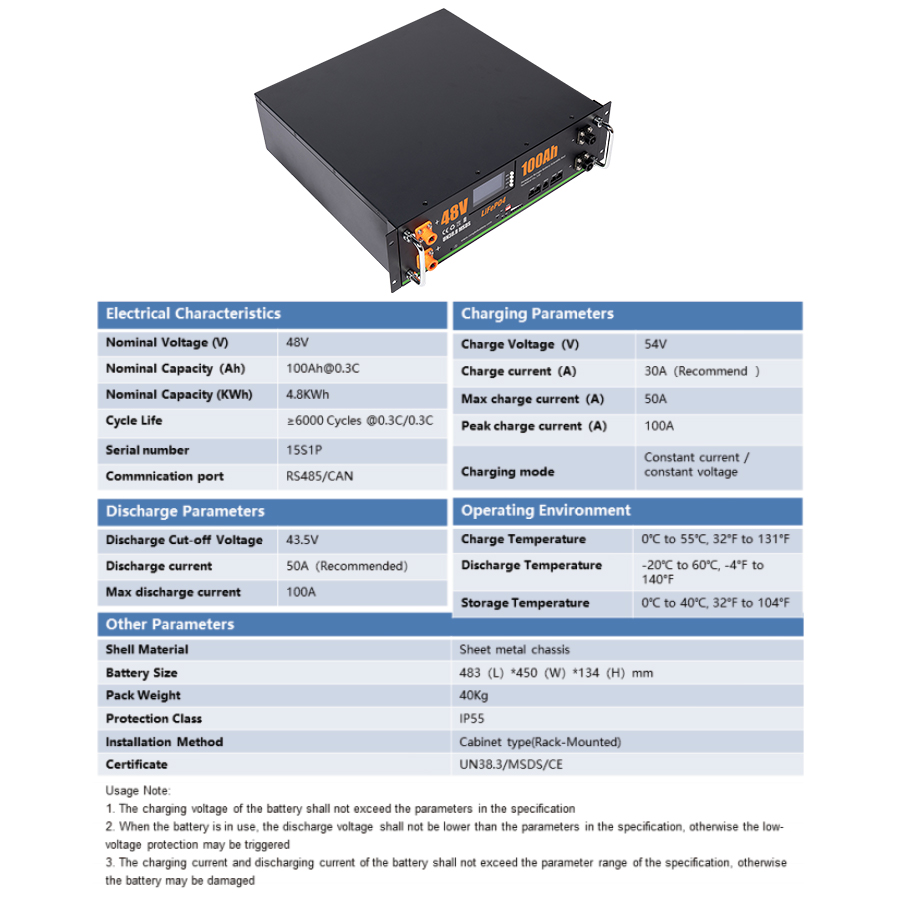

Electrical Characteristics
| Nominal Voltage (V) | 48V |
| Nominal Capacity (Ah) | 100Ah@0.3C |
| Nominal Capacity (KWh) | 4.8KWh |
| Cycle Life | 6000 Cycles @80% DOD / 25°C / 0.3C |
| Serial Number | 15S1P |

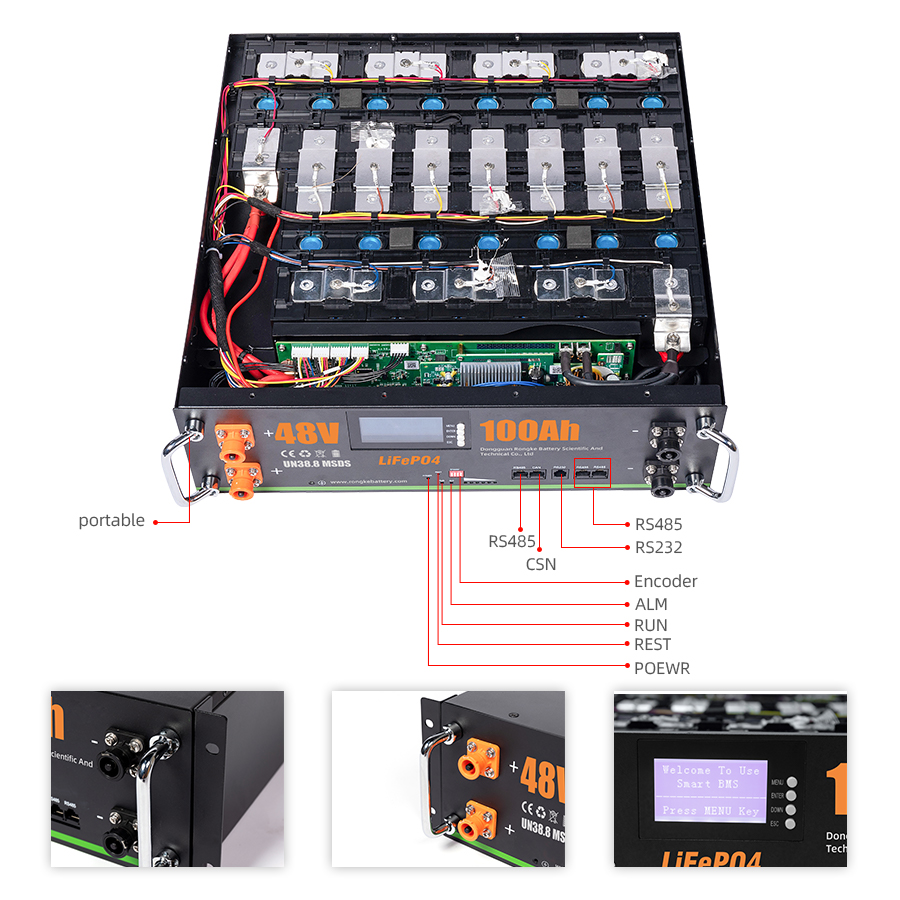

| Commnication Port | RS485/RS232/CAN |
Charging Parameters
| Charge Voltage (V) | 54V |
| Charge Current (A) | 30A(Recommend) |
| Max Charge Current (A) | 50A |
| Peak Charge Current (A) | 100A |
| Charging Mode | Constant Current /Constant Voltage |
Discharge Parameters
| Discharge Cut-off Voltage | 43.5V |
| Discharge Current | 50A(Recommend) |
| Max Discharge Current | 100A |
Operating Environment
| Charge Temperature | 0°C to 55°C (32°F to 131°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to140°F) |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
Other Parameters
| Shell Material | Sheet metal chassis |
| Battery Size | 483 (L) *450(W)*134(H) mm |
| Pack Weight | 42Kg |
| Protection Class | IP55 |
| Installation Method | Rack Mounted |
| Certificate | Cell: UN38.3/IEC62619/ UL 1642/JET Batter pack: UN38.3 /IEC62619 / IEC61000 /UKCA (More available upon request) |
Usage Note:
1.The charging voltage of the battery shall not exceed the parameters in the specification
2. When the battery is in use, the discharge voltage shall not be lower than the parameters in the specification, othenwise the low-voltage protection may be triggered
3. The charging curent and discharging current of the battery shall not exceed the parameter range of the specification, otherwisethe battery may be damaged
