| Quantity: | |
|---|---|
| Model No. | RK-HVB5.0 | RK-HVB10.2 | RK-HVB10.2 | RK-HVB12.8 | RK-HVB15.4 |
| Battery Module | 102.4V | 2.56kWh 600*480*190mm | 40kg | ||
| Rated Energy (kWh) | 5.12 kWh | 7.68 kWh | 10.24 kWh | 12.8 kWh | 15.36 kWh |

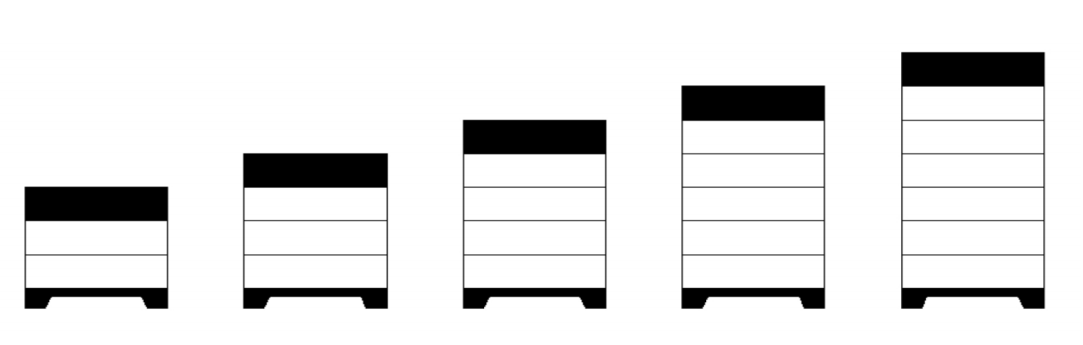

| Number of Modules | 2 | 3 | 4 | 5 | 6 |
| Cell Type | LFP (LiFePO4) | ||||
| Cell Configuration | 32S1P(x2) | 32S1P(x3) | 32S1P(x4) | 32S1P(x5) | 32S1P(x6) |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
| Cycle Life | ≥6000 Cycles @0.3C/0.3C | ||||
| Commnication Port | RS485/CAN | ||||
| Charge Voltage | 230.4V | 345.6V | 460.8V | 576V | 691.2V |
| Charge Current | 9A(Recommend) | ||||
| Max Charge Current | 12.5A | ||||
| Peak Charge Current | 25A | ||||
| Charging Mode | Constant current / constant voltage | ||||
| Discharge Cut-off Voltage | 185.6V | 278.4V | 317.2V | 464V | 556.8V |
| Discharge Current | 12.5A(Recommend) | ||||
| Max Discharge Current | 25A | ||||
| Peak Discharge Current | 50A | ||||
| Charge Temperature | 0℃ to 55℃ | ||||
| Discharge Temperature | -20℃ to 60℃ | ||||
| Storage Temperature | 0℃ to 40℃ | ||||
| Dimensions (H/W/D)mm | 600*480*670mm | 600*480*860mm | 600*480*1050mm | 600*480*1240mm | 600*480*1430mm |
| Pack weight | 95Kg | 135Kg | 175Kg | 215Kg | 255Kg |
| Protection Class | IP55 | ||||
| Certificate | UN38.3/MSDS/CE | ||||
| Warranty | 10 Year manufacturer defect | ||||
