| Quantity: | |
|---|---|
| Type | 100ah AGM Backup Battery |
| Nominal Voltage (V) | 12V |
| Nominal Capacity（Ah） | 100Ah@0.3C 25℃/77℉ |
| Application | Home Appliances, Solar Energy Storage Systems |
| Brand Name | Rongke |
| Certification | CE |
| Model Number | RK-12V100AH-AGM |
| Place of Origin | China |
| Weight | 29kg |
| Storage Type | Dry, Cool and Ventilation |
Product Description
NOTE:
* It is recommended to connect batteries with the same type (AGM), same voltage (V), and same capacity (Ah) from the same brand.
12V Deep Cycle AGM Battery is an excellent choice for standby or daily power needs. Built tough with a leak-proof design, this maintenance-free battery can be run in various systems, including RVs, off-grid cabins, marine, home backup power supplies, emergency power systems, medical devices, and more. It's a reliable, convenient, and economical rechargeable battery solution.
Package Includes:

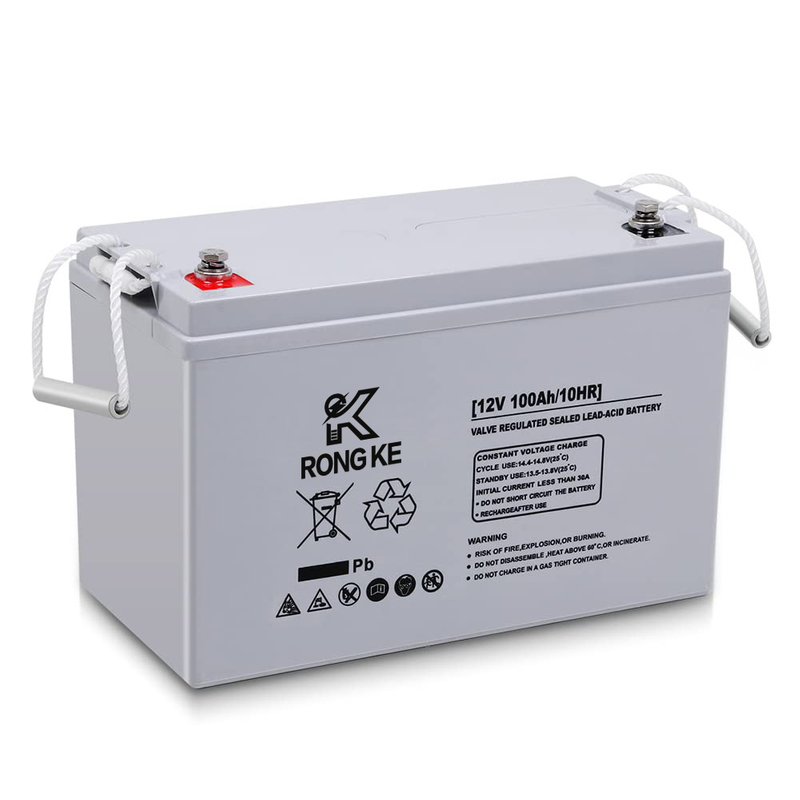

12V 100Ah Deep Cycle AGM Battery with M8 Terminal Bolts

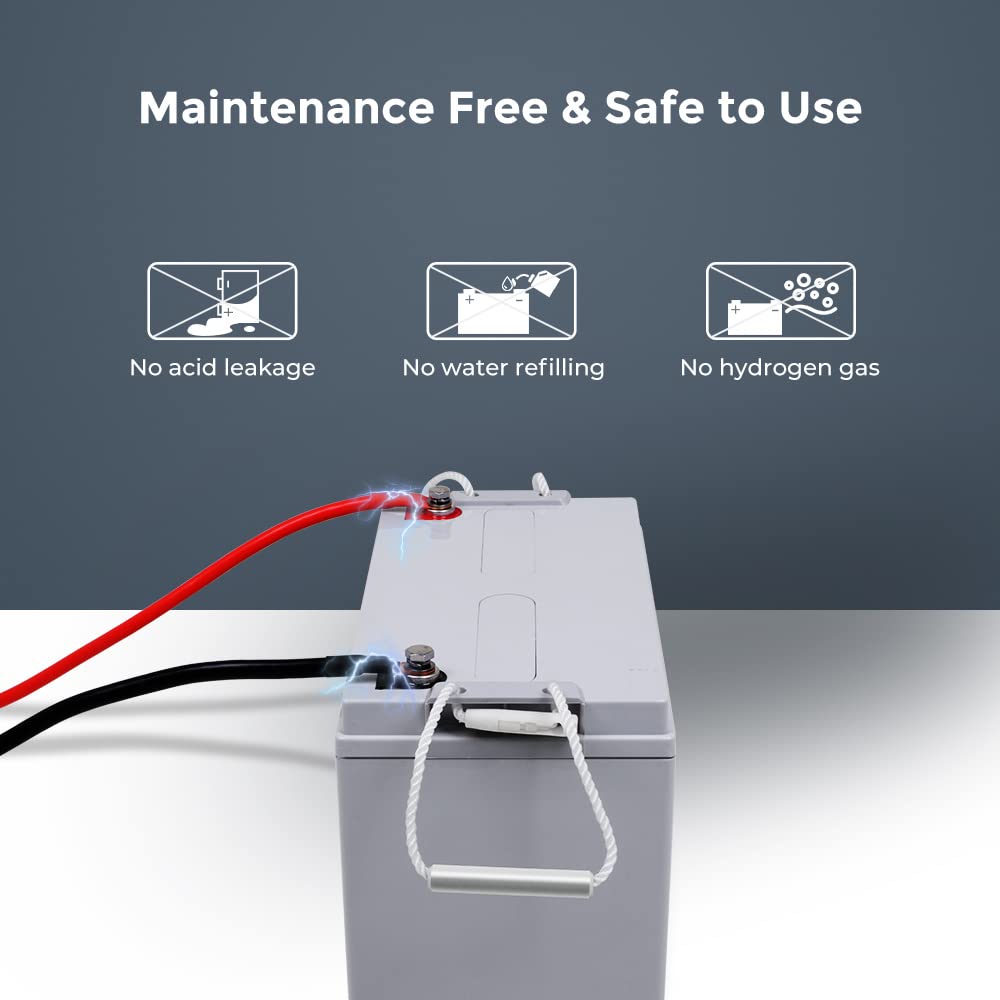

Maintenance-free, no water refilling
Leak-proof and non-gassing for safety charge
3% self-discharge rate at 77°F (25℃) per month
Excellent discharge performance
2000A (5 seconds) max. discharge current
Discharge temperature range: -4°F~140°F
Rated Capacity: 100 Ah
Nominal Voltage: 12V
Cycle Use Voltage: 14.4V~14.8V (77°F)
Operating Temperature: Discharge: 5°F~122°F; Charge: 5°F~104°F
Storage Temperature Range: 5°F~104°F
Max Charge Current: 30A

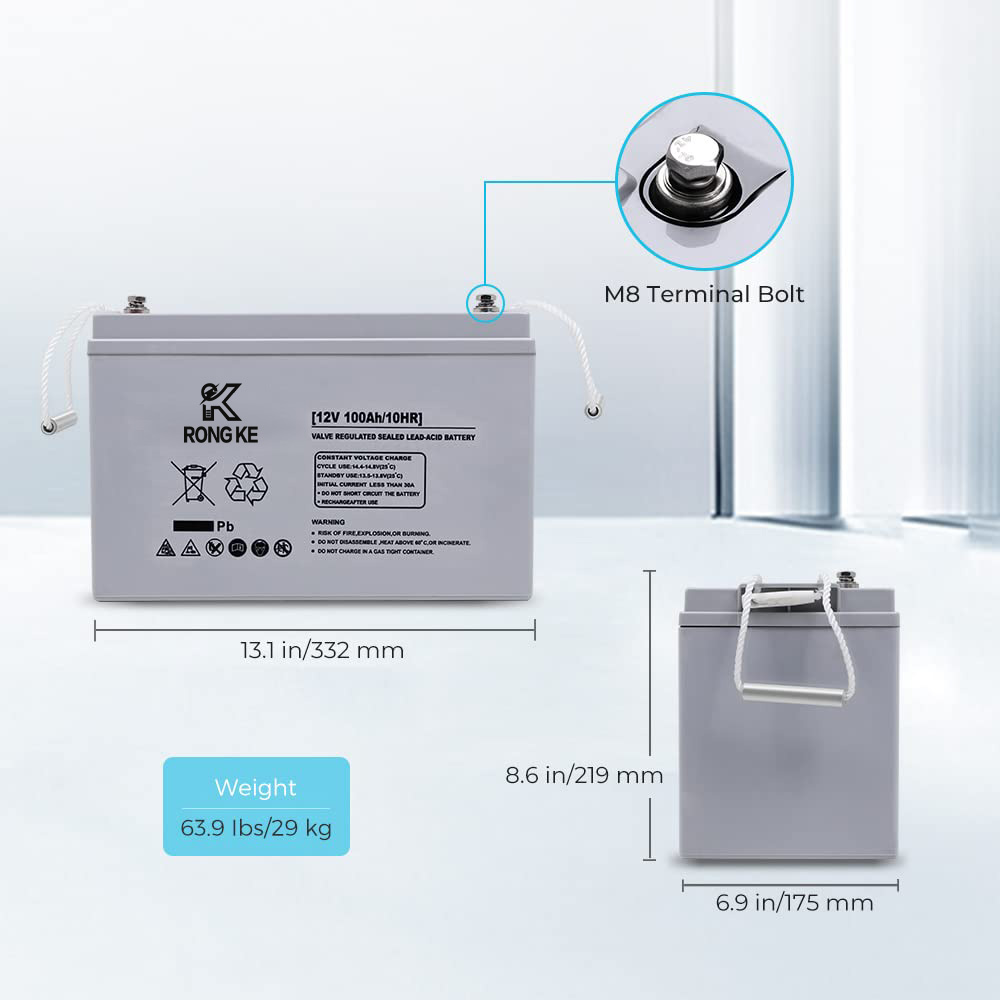

Dimension: 13.1 x 6.9 x 8.6 inch
Weight: 63.9 lbs

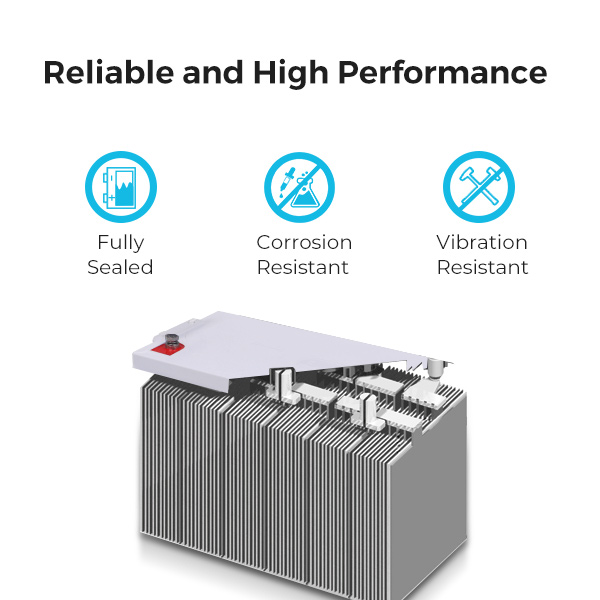

Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, the battery is maintenance-free, leak-proof, and gas-free.
Proprietary quinary alloy plates and specially treated plate grids enable outstanding discharge performance.

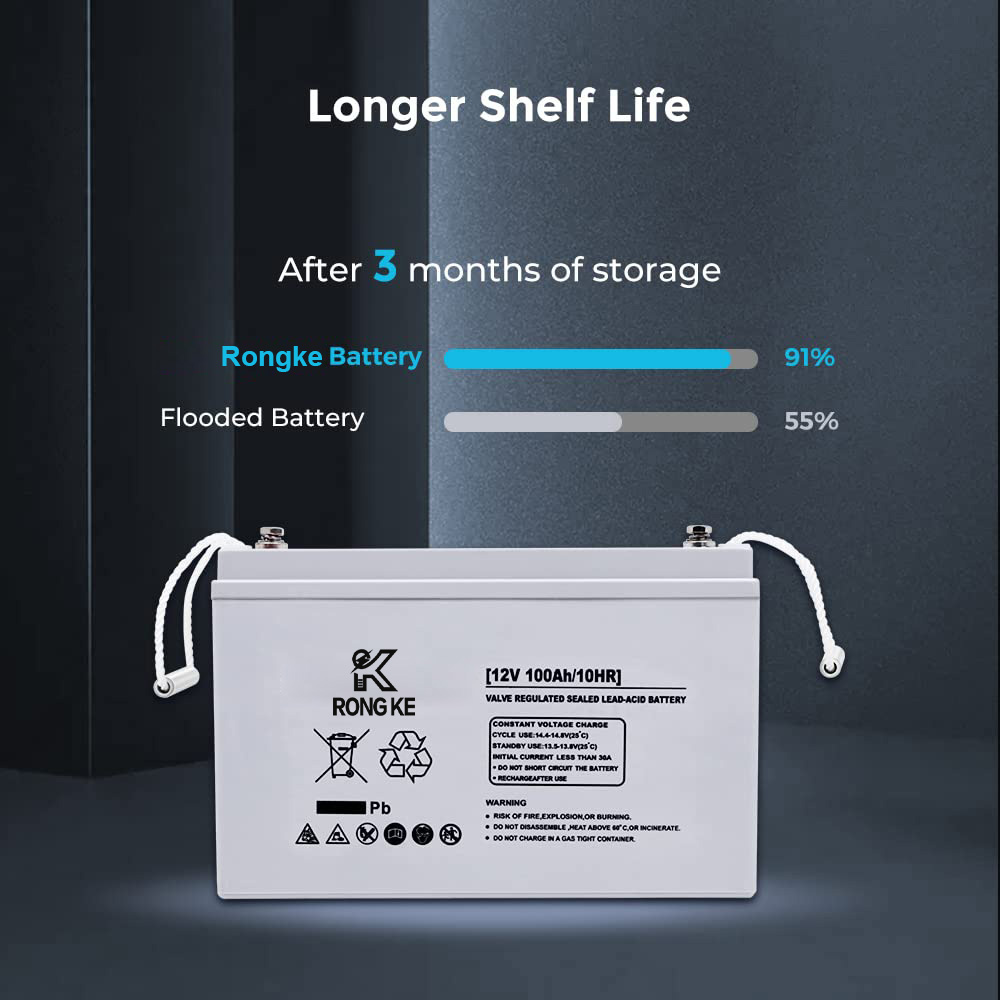

When not in use, the monthly self-discharge rate of this Rongke Deep Cycle AGM sealed battery is as low as 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts.
The maximum 1100A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge.
With a consistent and stable discharge, the battery can power up most common home appliances, such as a microwave, CPAP, coffee maker, laptop, and more.
The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from 5℉ (-15℃) to 122℉ (50℃).
The battery is designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.

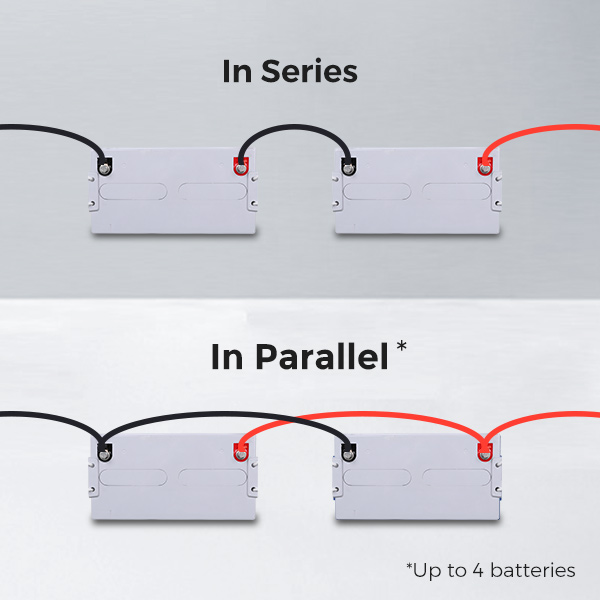

You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series.
It's recommended to connect batteries with the same type (AGM), same capacity (Ah), and same voltage (V) from the same brand.
We recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.

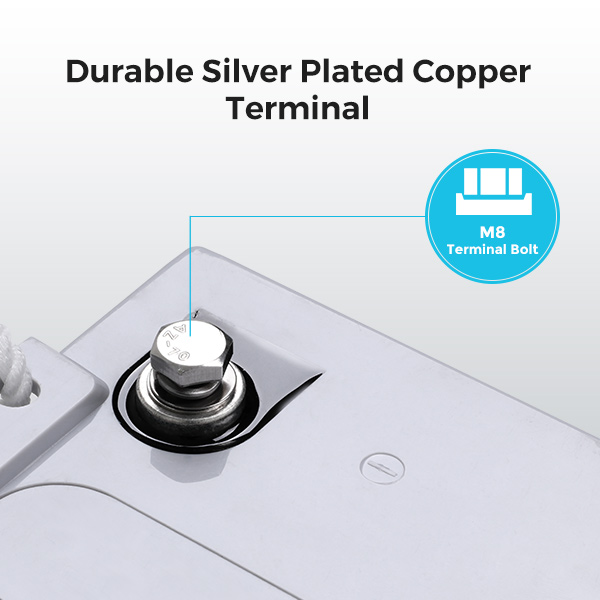

The battery comes with two silver-plated M8 terminal bolts for cable wiring. And there are positive (+) and negative (-) icons on the container for easy wiring identification.
Built with rugged ABS container material, the battery is vibration resistant and durable.
FAQ
1.Q:Do they come with the terminal bolts? if not what size do they take?
A:This RONGKE AGM battery comes with two M8 x 1.25 x 20 mm terminal bolts.
2.Q:Can I connect batteries in series and in parallel?
A:Yes, you can. The maximum number that can be connected in parallel is 4. In series, there are no limitations.
3.Q:Can I connect a 100 Ah battery to a 200 Ah battery?
A:No, you can't. All the batteries you connect together should be the same capacity (Ah), the same voltage (V), and most importantly, the same battery type (AGM). And it would be better if they come from the same brand.
4.Q:What's the best way to place and store this battery?
A:It's a sealed battery and we recommend placing the battery upright. It is allowed to be placed and installed on its side only if there are special reasons for doing so. DO NOT place the battery upside down. You should store it in a dry and cool (5°F~104°F / -15°C~40°C) place. Make sure that it is 100% charged before storing it, and recharge after three months.
5.Q:Can I discharge the battery to 0% and then recharge it again?
A:To avoid cycle life shortening, it is recommended not to discharge the battery below 50%. And when not in use, we recommend charging it 100% before storing it and recharging it after three months.
6.Q:I will go to live in my forest cabin during the winter holiday. So I want to know that can this battery be used at freezing temperatures?
A:The discharge working temperature range is 5°F~122°F (-15°C~50°C) and the charge temperature range is 5°F~104°F (-15°C~40°C). Using this battery at a lower or higher temperature than the range will shorten the battery's lifespan. We recommend checking the specific daily temperature of the place you will be going before using this AGM battery.
7.Q:When using a charge controller, which battery type should I set?
A:You should choose the SLD battery settings.
