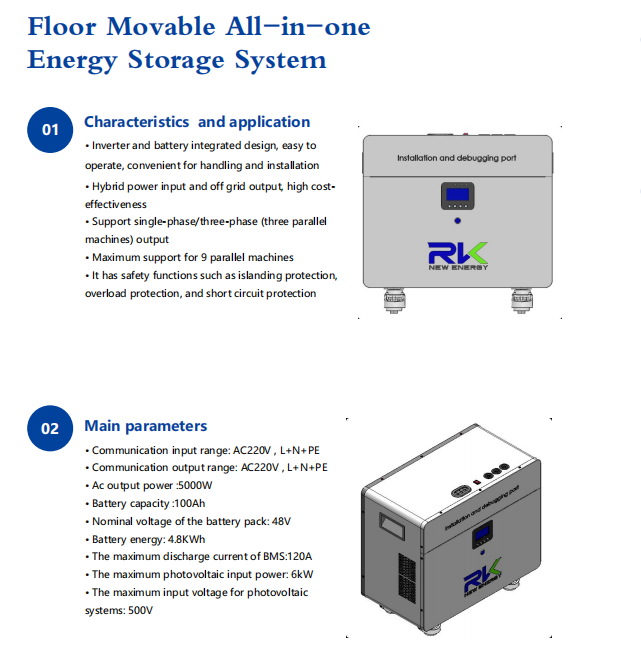

Floor Movable All-in-one Energy Storage System 5KW+5KWh

Characteristics and application
.lnverter and batteryintegrated design, easy to
operate, conenient for handling and installation
.Hybrid power input and off grid output high cost.
effectiveness
Support single.phaseythree-phase (three parallel
machines)output
.Maximum support for 9 parallel machines
.It has safety functions such as islanding protection
overload protection,and short circuit protection

Main parameters
.Communication input range: Ac220,L+N+PE
.Communication outputrange: Ac220V,L+N+PE
Ac output power :5000W
Battery capacity :100Ah
Nominal voltage ofthe battery pack: 48V
Battery energy: 4.8kWh
The maximum discharge current of BMS:120A
.The maximum photovoltaic input power. 6kW
.The maximum input voltage for photovoltaic
systems:500V
